The physics of tuning a guitar – the extreme stretching of strings of different diameters – has fascinated me for years, but it is only now that my life has become pointless that I have managed to devote some time to investigating the phenomenon.
What I have found is that the design of guitar strings is extraordinarily clever, leaving me in awe of the companies which make them. They are everyday wonders!
Before I get going, I just want to mention that this article will be a little arcane and a bit physics-y. Apologies.
Nylon Guitar Strings
The first question is why are guitar strings made the way they are? Some are plain ‘rustless steel’, but others have a steel core around which are wound super-fine wires of another metal, commonly phosphor-bronze.
The second question concerns the behaviour of the thinnest string: when tuned initially, it spontaneously de-tunes, sometimes very significantly, and it does this for several hours after initially being stretched.
Click image for a larger version. The structure of a wire-wound guitar string. Usually the thickest four strings on a guitar are made this way.
Best Acoustic Guitar Strings
Of course, I write these questions out now like they were in my mind when I started! But no, that’s just a narrative style.
When I started my investigation I just wanted to see if I understood what was happening. So I just started measuring things!
Click image for a larger version. Using a jewellery scale to weigh a pre-measured length of guitar string. Notice the extraordinary resolution of 1 mg. Typically repeatability was at the level of ± 1 mg.
Alloy Strings Acoustic Guitar Strings
These measurements are enough to calculate the tension in the string, but I am also interested in the stress to which the material of the string is subjected.
The stress in the string is defined as the tension in the string divided by the cross-sectional area of the string. I can work out the area by measuring the diameter of string with digital callipers. These devices can be bought for under £20 and will measure string diameters with an uncertainty of 0.01 mm.
However there is a subtlety when it comes to working out the stress in the wire-wound strings. The stress is not carried across the whole cross-section of the wire, but only along its core – so one must measure the diameter of the core of these strings (which can be done at the ends) but not the diameter of the playing length.
D'addario Will Recycle Your Guitar Strings With No Weight Minimum
Click image for a larger version. The calculated tension in the 6 strings of a steel-strung guitar. String 1 is the thinnest (E4) and String 6 is the thickest (E2).
The tension is high – roughly 120 newtons per string. If the tension were maintained by a weight stretching the string over a wheel, there would be roughly 12 kg on each string!
Note that the tension is reasonably uniform across the neck of the guitar. This is important. If it were not so, the tension in the strings would tend to bend the neck of the guitar.
Amg Music Acoustic Guitar String Set With Colour Beads Light Weight Stainless Steel Bright Tone Guitar String Price In India
Click image for a larger version. The measured diameter (mm) of the stainless steel core of the 6 strings of a steel-strung guitar and the diameter of the string including the winding. String 1 is the thinnest (E4) and String 6 is the thickest (E2).
First the obvious. The diameter of the second string is 33% larger than the first string, which increases its mass per unit length and causes the second string to vibrate at a frequency 33% lower than the first string. This is just the basic physics.
The core of the third string is smaller than the second string. And the core diameters of each the heavier strings is just a little larger than the preceding string.
Morrison Nova Acoustic Electric Classical Guitar Strings For Primary Guitar Players And Intermediate Player
If we simply take the ratios of outer diameters of the top and bottom strings (1.34/0.31 ≈ 4.3) this is sufficient to explain the required two octave (factor 4) change in frequency.
A piece of stainless steel 1.34 mm in diameter is not ‘a string’, it’s a rod. Think about the properties of the wire used to make a paperclip.
So although one could attach such a solid rod to a guitar, and although it would vibrate at the correct frequency, it would not move very much, and so could not be pressed against the frets, and would not give rise to a loud sound.
Gibson Acoustic Guitar Strings Master Built Premium Ultralight Gauge 011 052
The first thing I calculated was the tension in each string. By dividing that result by the cross-sectional area of each string I can calculate the
But it’s important to realise that the tension is only carried within of the steel core of each string. The windings only provide mass-per-unit-length but add nothing to the resistance to stretching.
Click image for a larger version. The estimated stress with the stainless-steel cores of the 6 strings of a steel-strung guitar. Notice that the first and third strings have considerably higher stress than the other strings. In fact the stress in these cores just exceeds the nominal yield stress of stainless steel. String 1 is the thinnest (E4) and String 6 is the thickest (E2).
Alice Acoustic Guitar String At Rs 105/piece
This graph contains the seeds of an explanation for some of the tuning behaviour I have observed – that the first and third strings are tricky to tune.
With new strings one finds that – most particularly with the 1st string (the thinnest string) – one can tune the string precisely, but within seconds, the frequency of the string falls, and the string goes out of tune.
. The physics is immensely complex, but briefly, when a high stress is applied rapidly, the stress is not uniformly distributed within the microscopic grains that make up the metal.
Alice Ae 530l Electric Guitar String (.009 / .011 / .016 / .024 / .032 / .042) (ae530l)
To distribute the stress uniformly requires the motion of faults within the metal called dislocations. And these dislocations can only move at a finite rate. As the dislocations move they relieve the stress.
The yield stress of a metal is the stress beyond which the metal is no longer elastic i.e. after being exposed to stresses beyond the yield stress, the metal no longer returns to its prior shape when the stress is removed.
For strong steels, stretching beyond their yield stress will cause them to ‘neck’ and thin and rapidly fail. But stainless steel is not designed for strength – it is designed not to rust! And typically its yield curve is different.
M3 Guitar 3.0 Strings
Typically stainless steels have a smooth stress-strain curve, so being beyond the nominal yield stress does not imply imminent failure. It is because of this characteristic that the creep is not a sign of imminent failure. The ultimate tensile strength of stainless steel is much higher.
Knowing the stress to which the core of the wire is subjected, one can calculate the expected strain i.e. the fractional extension of the wire.

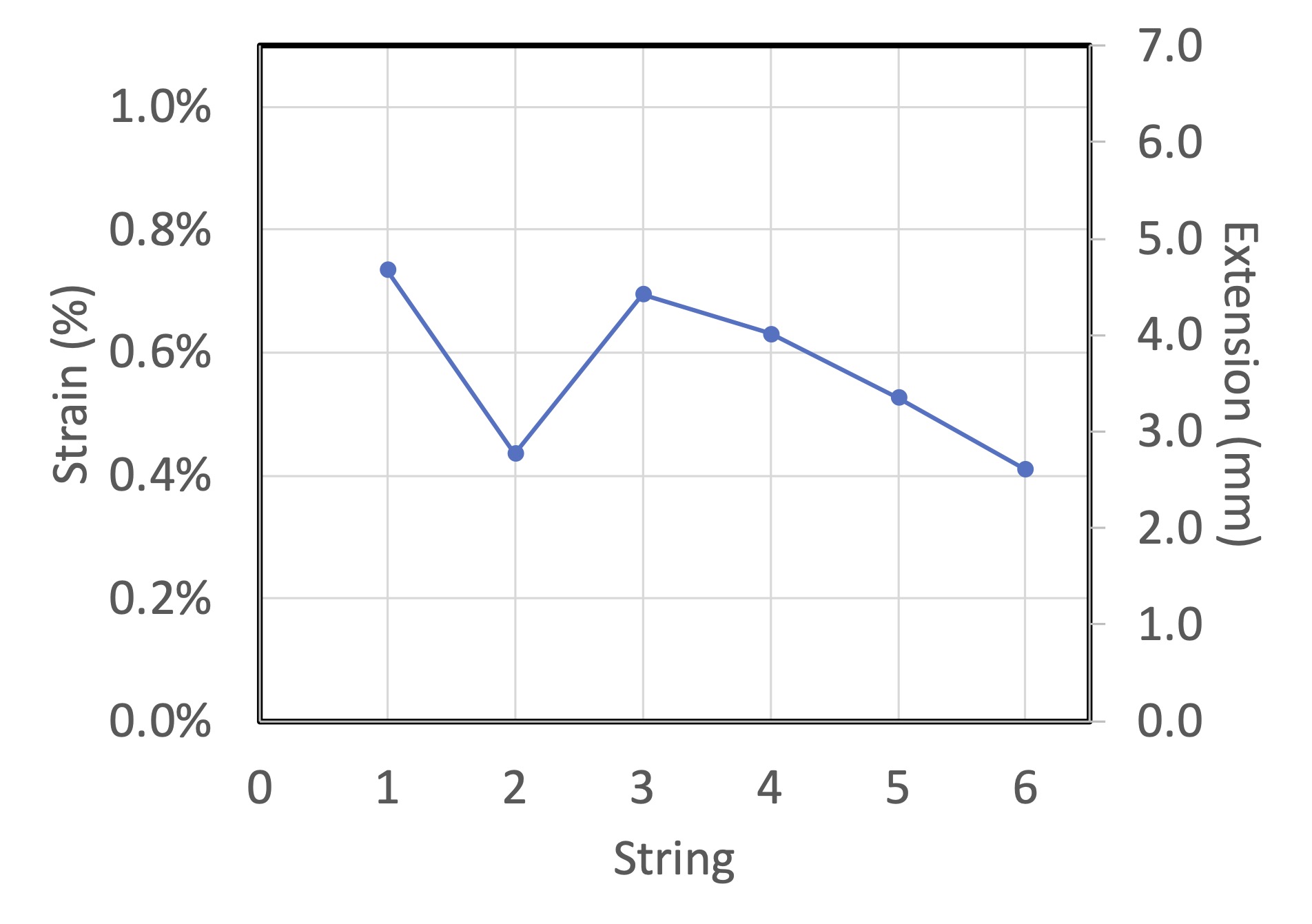

Click image for a larger version. The estimated strain of the 6 strings of a steel-strung guitar. Also shown on the right-hand axis is the actual extension in millimetres Notice that the first and third strings have considerably higher strain than the other strings. String 1 is the thinnest (E4) and String 6 is the thickest (E2).
D'addario Ez 890 Super Light Gauge Acoustic Guitar String (.009 .012 .015 .025 .035 .045) (ez890)
The calculated fractional string extension (strain) ranges from about 0.4% to 0.8% and the actual string extension from 2.5 mm to 5 mm.
This is difficult to measure accurately, but I did make an attempt by attaching small piece of tape to the end of the old string as I removed it, and the end of the new string as I tightened it.
Click image for a larger version. Method for estimating the strain in a guitar string. A piece of tape is tied to the top of the old string while it is still tight. On loosening, the tape moves with the part of the string to which it is attached.
G7th Nashville Capo Steel String
For the first string my estimate was between 6 mm and 7 mm of extension, so it seems that the calculations are a bit low, but in the right ball-park.
Starting with the thinnest string, these are typically available in a range from 0.23 mm to 0.4 mm. The thinnest strings are easy to bend, but reducing the diameter increase the stress in the wire and makes it more likely to break. They also tend to be less loud.
The thicker strings are usually wire-wound to increase the flexibility of the strings for a given tensioning mass-per-unit-length. If the strings were unwound they would be extremely inflexible, impossible to push against the frets, and would vibrate only with a very low amplitude.
Practice Nickel Plated Steel Guitar String Acoustic
How does the flexibility arise? When these wound strings are stretched, small gaps open up between the windings and allow the windings to slide past each other when the string is bent.
Click image for a larger version. Illustration of how stretching a wound string slightly separates the windings. This allows the wound components to slide past each other when the string is bent.
Additionally modern strings are often coated with a very thin layer of polymer which prevents rusting and probably reduces friction between the sliding coils.
Orphee Qa150 Qa160 Qa170 Acoustic Guitar Strings 6 String Gauge Light .009 0.045 Hard Bronze Wire Extra Light Guitar Accessories
The first set of questions concerns the behaviour of nylon strings used on classical guitars. Nylon has a very different stress-strain curve from stainless steel, and the contrast in density between
